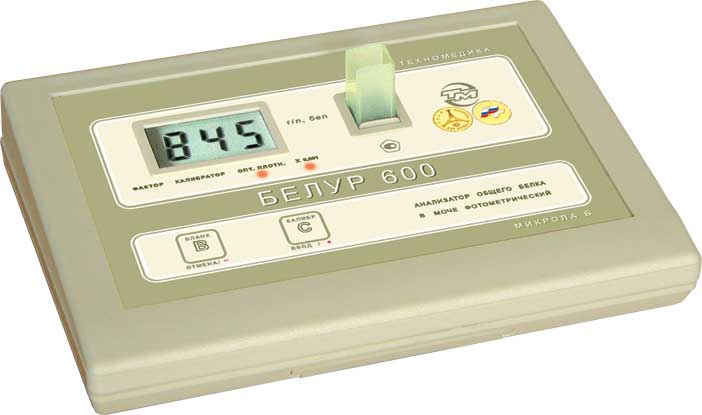

BELUR-600 urine analyser
portable photometric analyzer for total urine protein
 |
Portable analyzer allows measuring the
concentration of total protein in urine by photometrical
method. The instrument is handy and does not require
special staff training. Small size and autonomous power
source provide this device a wide range of application,
including ambulance, small laboratories of regional
and village hospitals and polyclinics.
Measurement range of concentration is from 0.01 to 1
g/l. Solutions of greater concentration require an additional
dilution. Accuracy at the beginning of range is 0.005
g/l. Probe is prepared using pyrogallol red dye, sulphosalicylic acid and other intended for photometry at 600 nm. Calibration
performs automatically using calibration probe. Analyzer is designed for use
of optical glass or plastic rectangular 10 mm cuvettes.
Time of one measurement is less than 2 seconds. |
The case of analyzer is made of light chemically proof
plastic. The face panel is covered by sanitary treatable
wearproof film. The LCD indicates data in a three-digit
decimal code.
Careful manual compliance and periodic care of optical surfaces
provide long-term faultless operation of the device.
Power supply can be provided by 3 AA size batteries, as
well as 220 V AC/5 V DC adapter.
Dimensions are 180x130x40 mm, weight is less than 400 g.
